HIDDEN - HOW TO SET UP Disco Dome Dance Party w/ Sound & Lighting System - UNIT #338
-
- Setup Area: 22ft W x 22ft D
- Outlets: Two - 15amp outlets OR one - 20amp outlet WITHIN 100FT OF UNIT
- Age Group: Up to 14 years old
- Water Hose Needed?: no
-
- $0.00
Driver info for Disco Dome set up:
(SEE MORE PICTURES BELOW)
This bouncer is for kids 14 and under. MINIMUM space needed will be 20ft wide x 22ft deep x 17ft tall. You will need TWO 15amp outlets WITHIN 100ft OF UNIT.- Set up the inflatable and stake it down like a normal bouncer. Leave room in the back side to move around and hook up the electronics.
-
You are going to need to deflate the unit and pull the top back to take the panel off of the top center to attach the lights and plug them in.

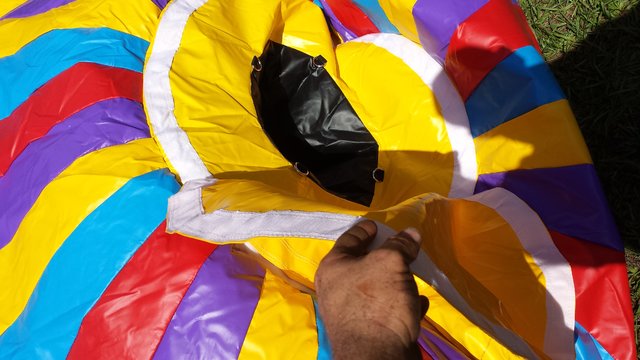

- Peel back the top center velcro panel and clip on the strobe light and motion movement light and plug them into the ORANGE plug that is already run inside the unit. Then replace the panel on the velcro on the top and blow the inflatable back up.
-

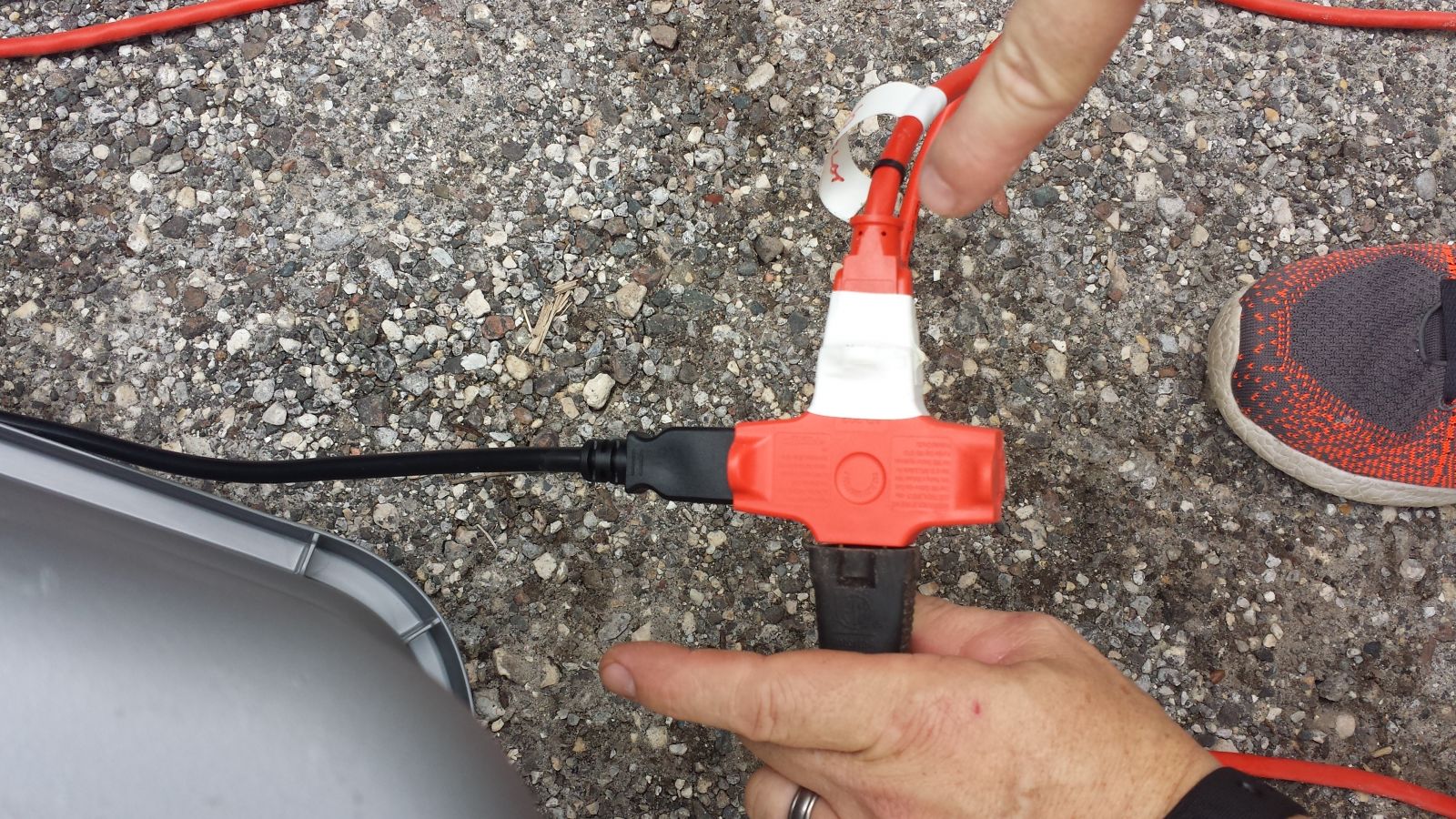

Since the lights are plugged into the top of the wire all that is left is to plug the wire at the bottom into an extension and ground power.
- Next install the two speakers into the outside back holes in the left and right side of the rear.
-

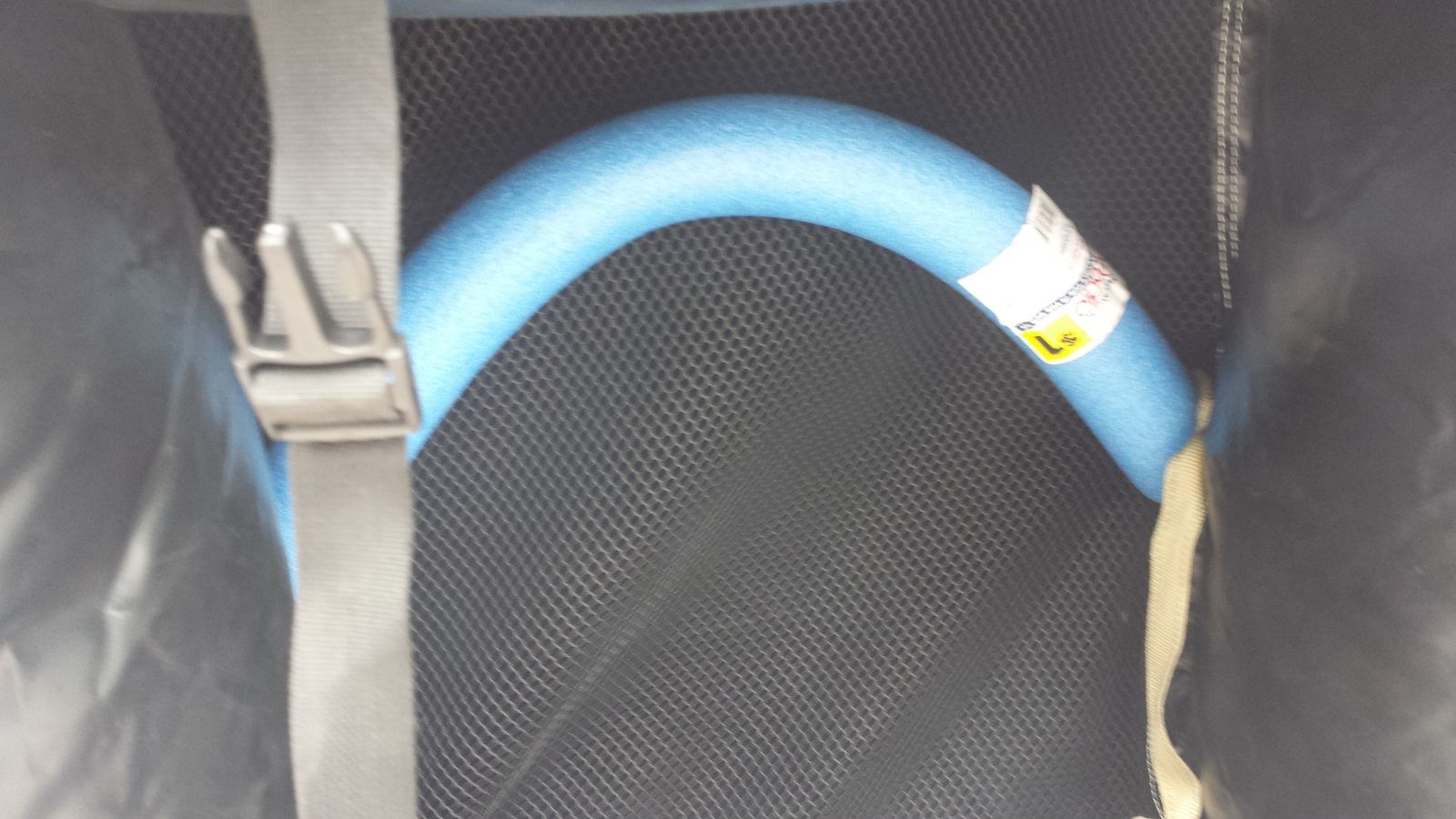

To set up the speakers first put in the pool noodle circle to protect the front of the speaker.
- Next set up the speaker settings before setting it into the hole -
-

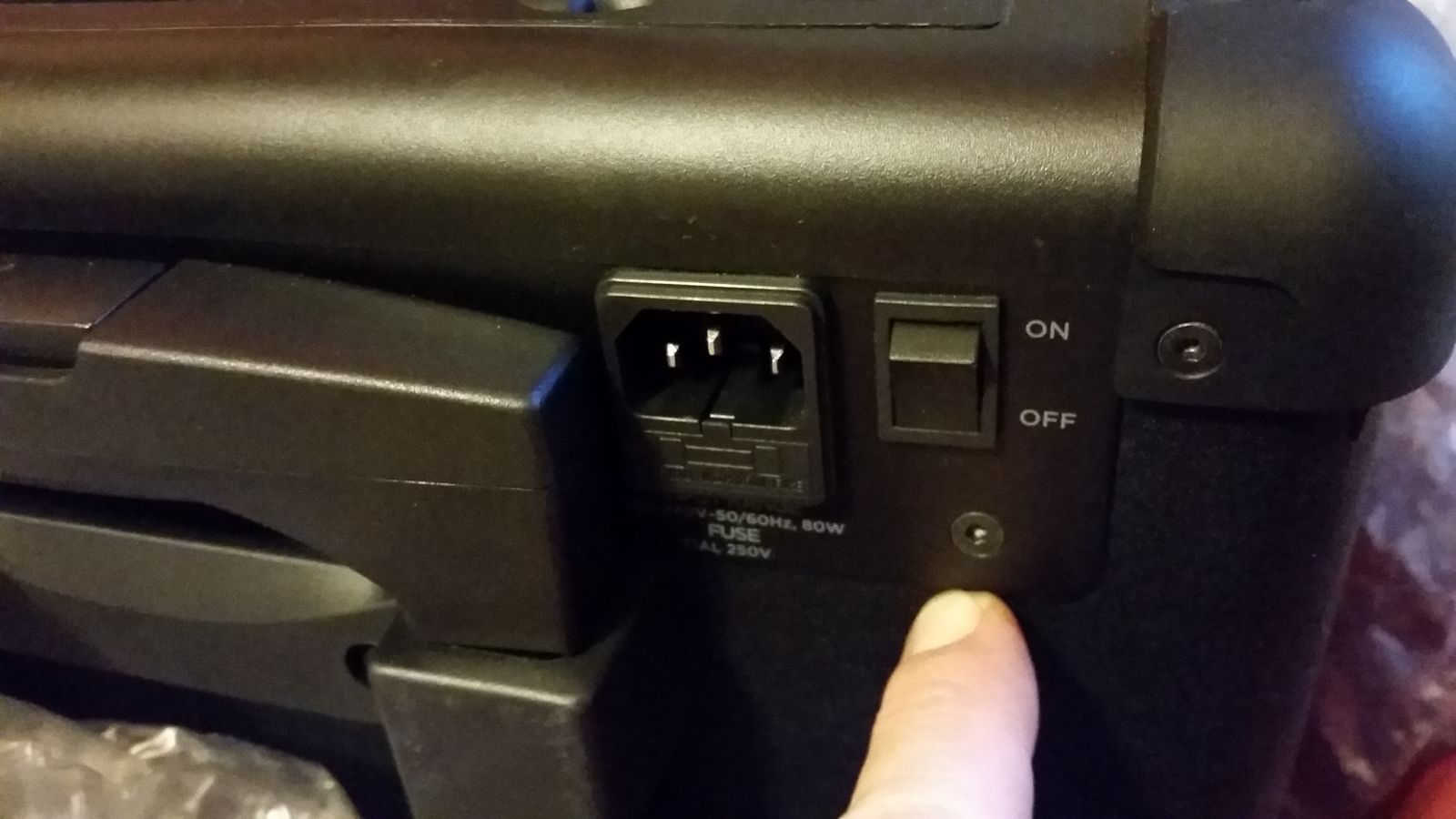

Turn on the speaker
-

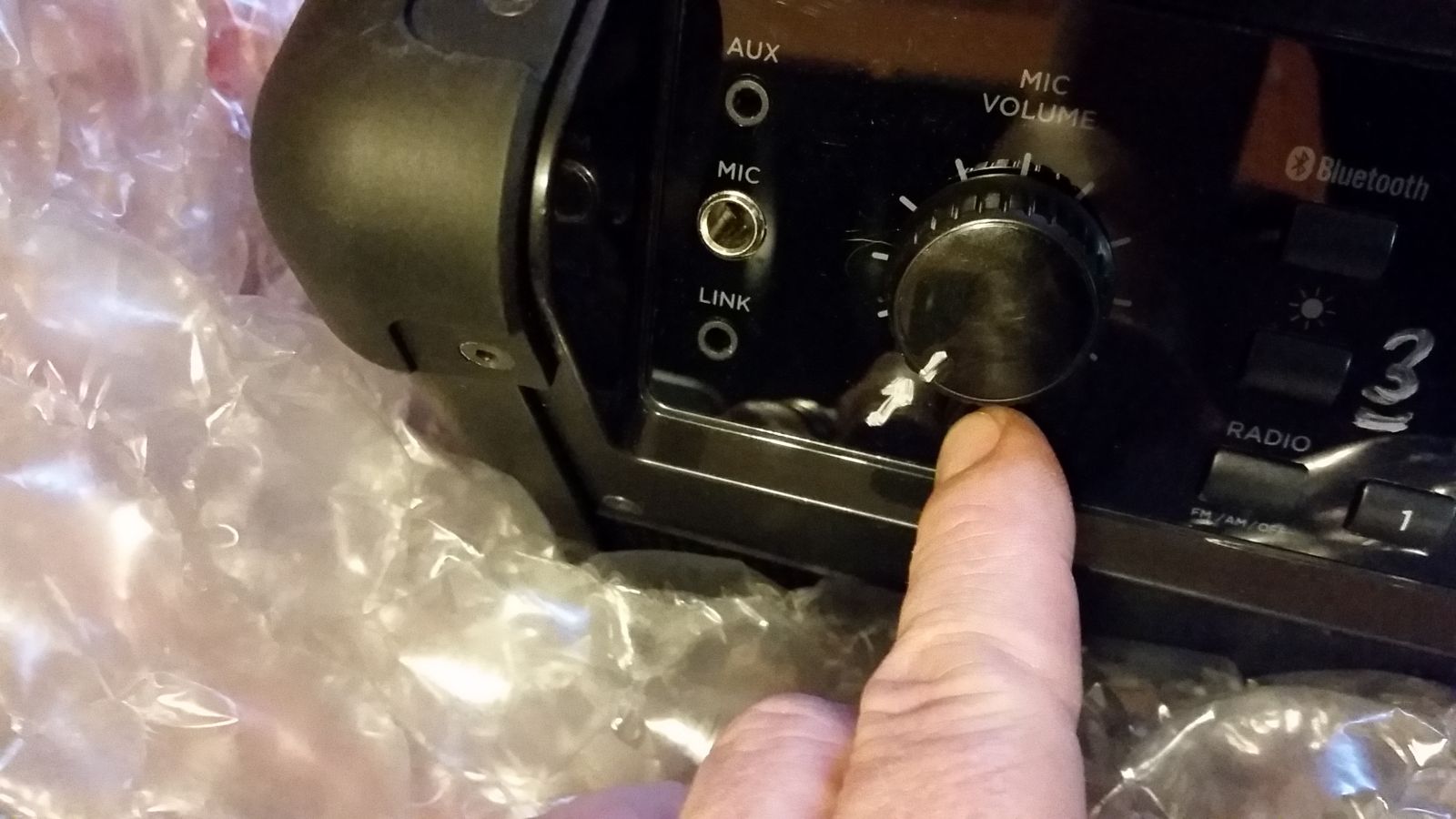

Set Mic level to LOWEST SETTING
-

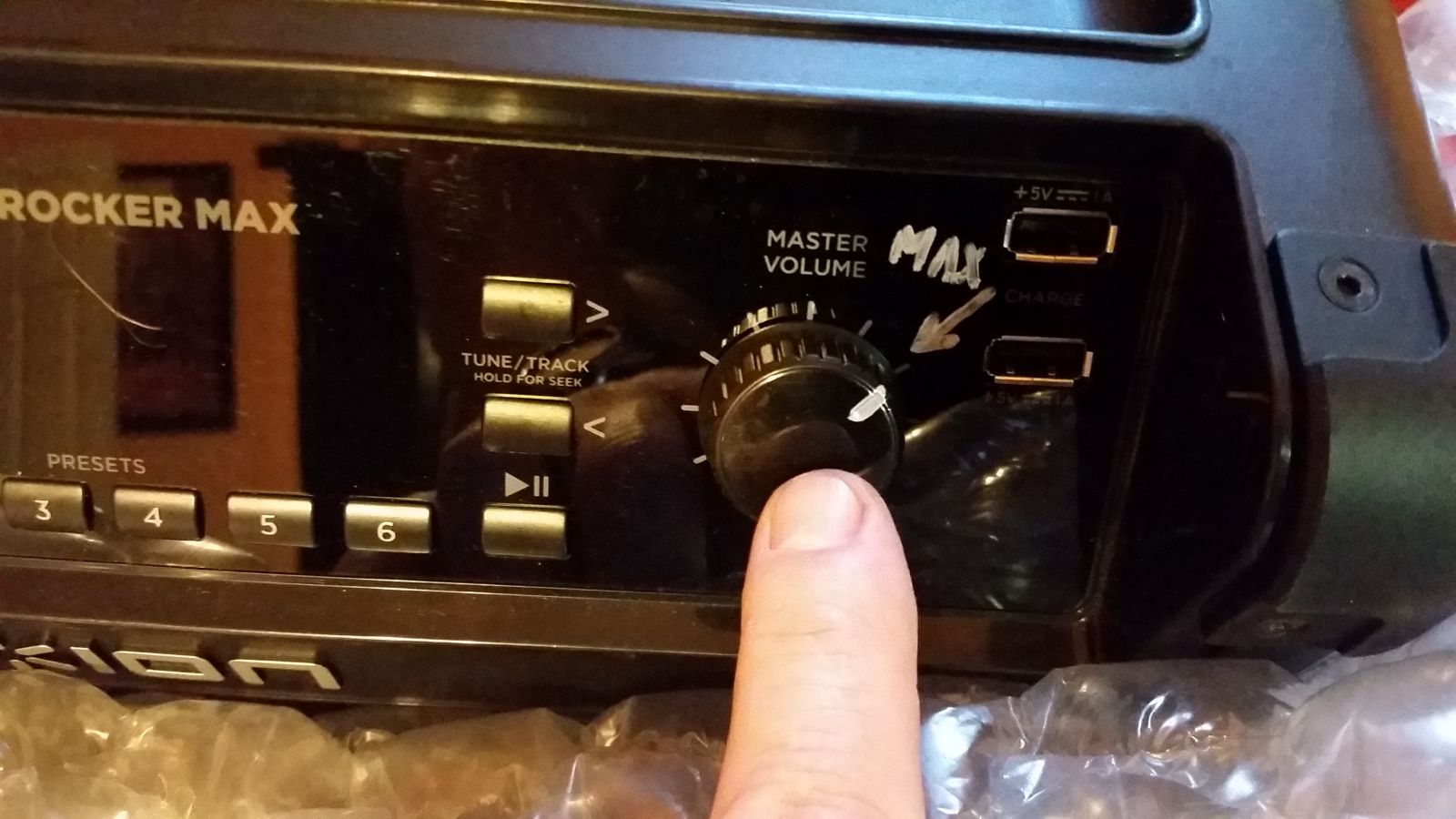

Set Master Volume to 3/4 setting - NOT MAX!
-

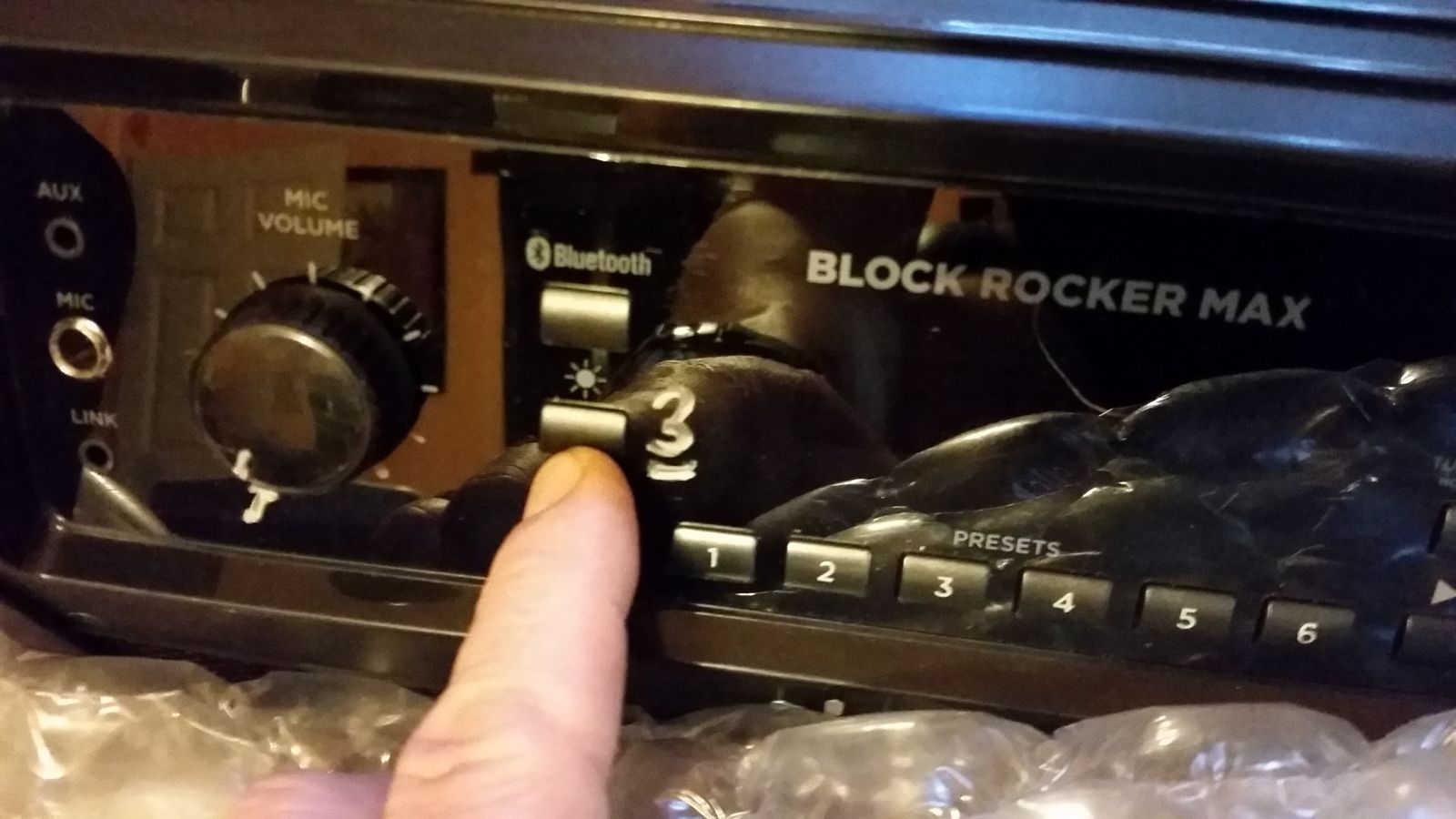

Turn on the lights (symbol on left ceter) by pushing the button THREE times so lights blink with the music.
- Speakers can be run plugged in OR on battery. If running on battery keep cords tied to the rear of speakers and unplugged.
- Bluetooth should be on and radio OFF if hooking up to customers phone or computer
-

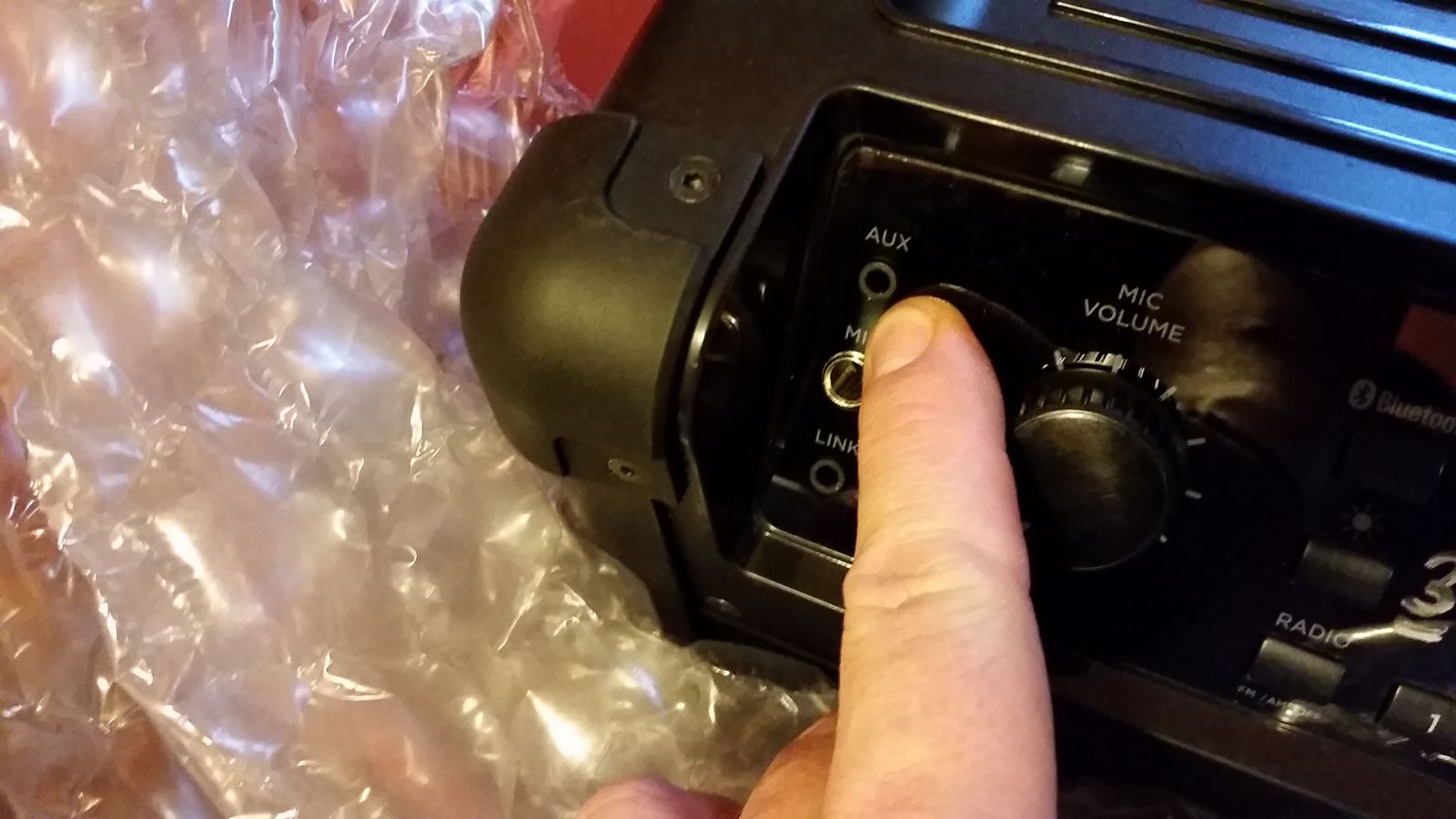

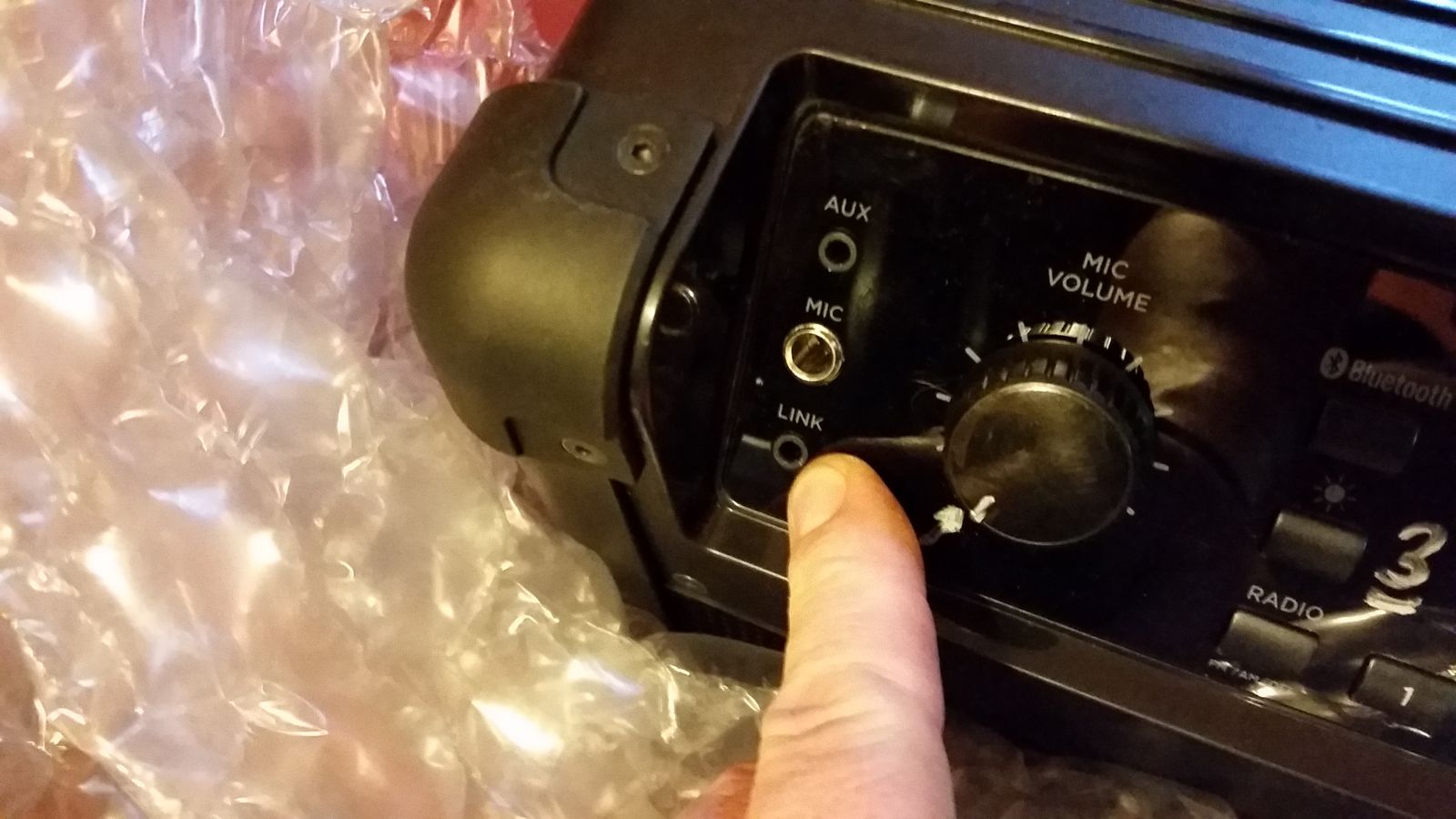

Put the wire into the speakers to link them. One side plugs into *AUX and the other into *LINK
-

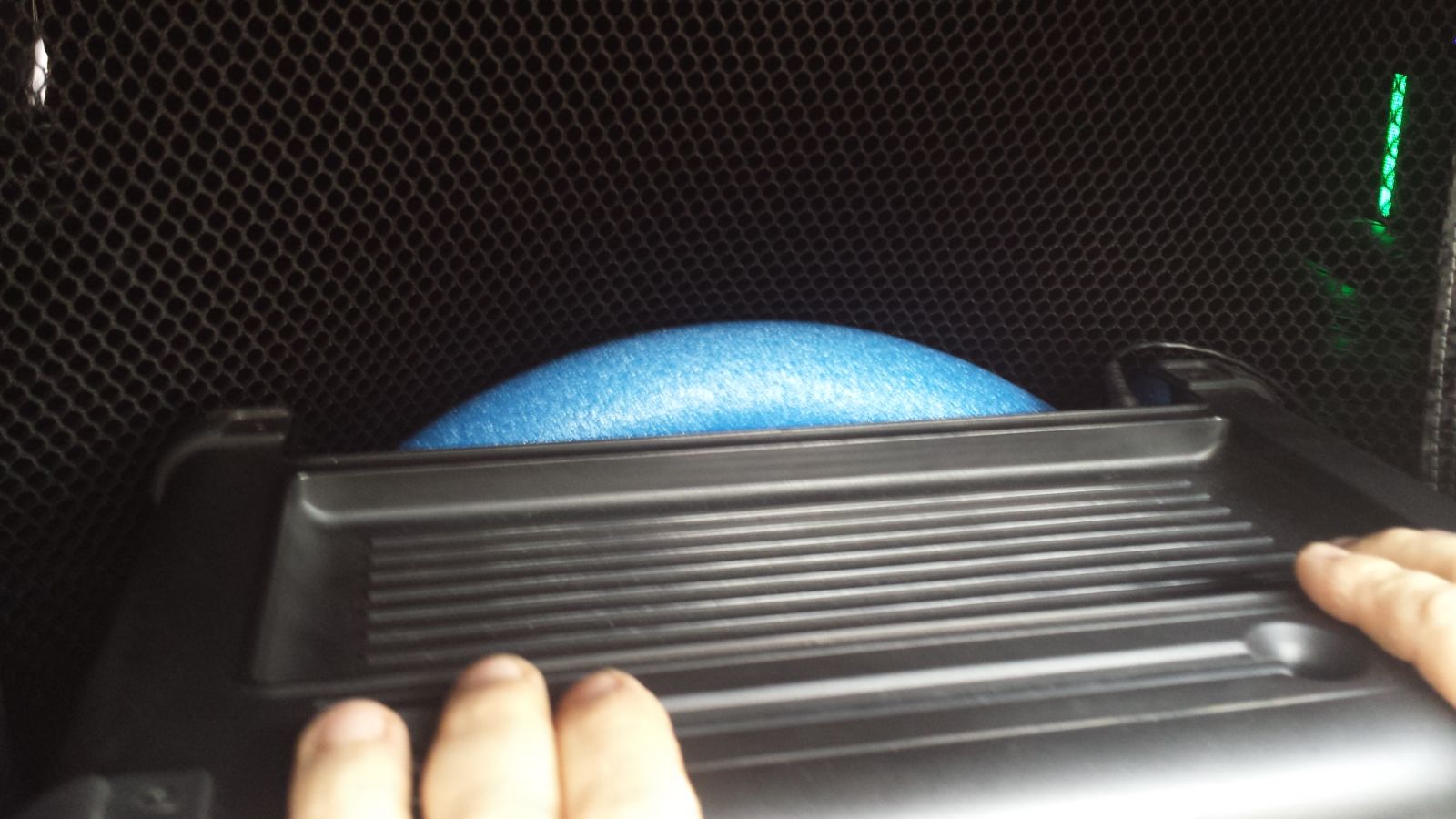

Put the speakers into the holes in the rear against the pool noodles and strap in with the cross straps. DO NOT INSTALL WITHOUT THE POOL NOODLES IN BETWEEN THE MESH AND SPEAKER'S FRONT!! This keeps the speakers and link wire protected from impact.
-

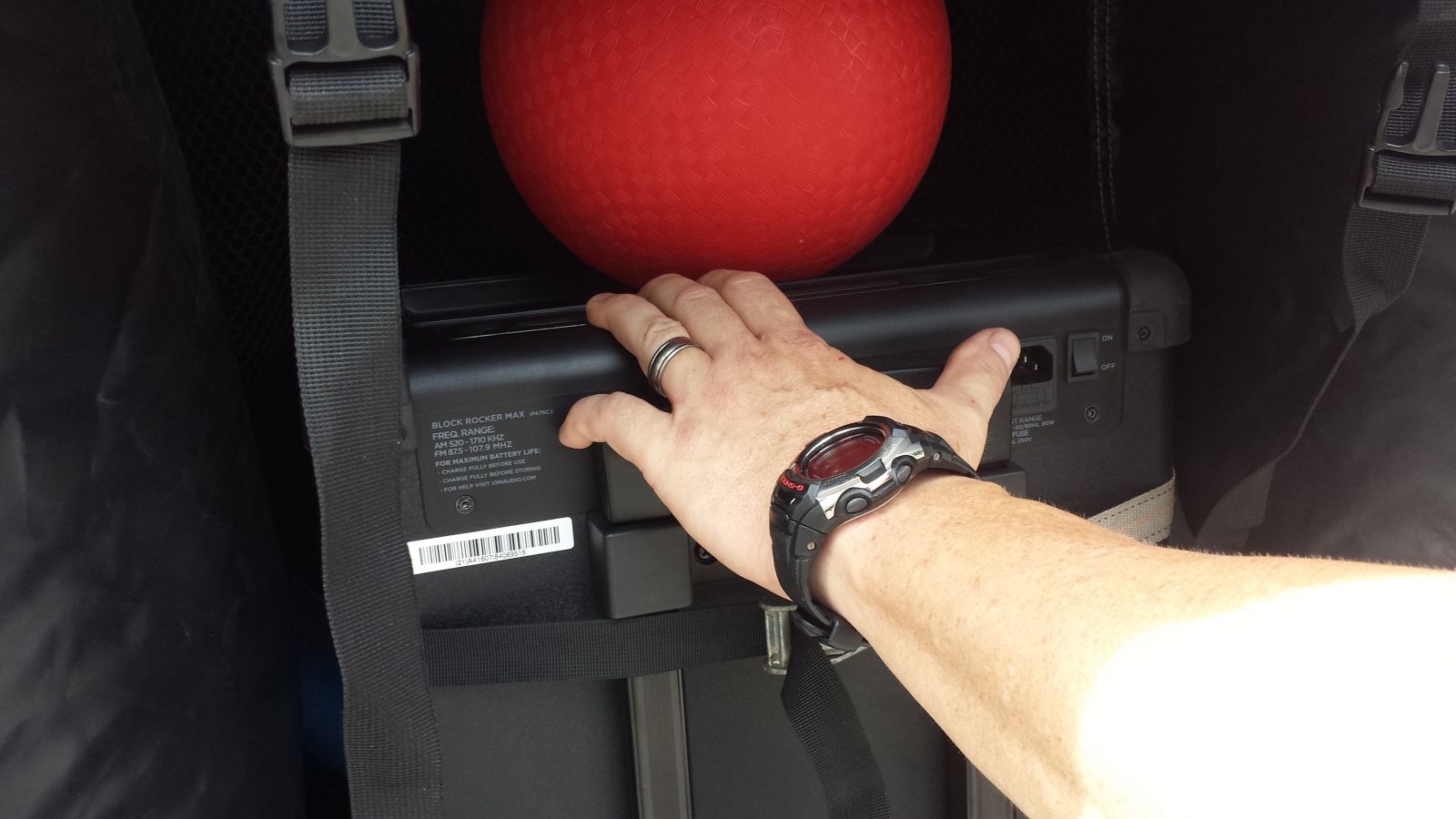

Put the playground ball into the top recess over the speakers to hold them into the holes tight!!
- You can test the speakers at this point and also make sure the lights inside are working with the sound of the music.
- Close the velcro flaps over the speakers. IF EVENT ISNT STARTING FOR A LONG TIME... OFFER TO TURN OFF THE SPEAKERS BUT - SHOW THE CUSTOMERS HOW TO TURN THEM BACK ON AND RESET THE LIGHTS!!! THEY MUST KNOW HOW TO DO THIS.
- Next set up the Fog / Haze machine.
-
The Haze machine gets plugged into the same wire as the lights.
.jpg)
- Go over the entire unit with the customer. Try to sync their bluetooth to the main speaker and explain the volume restrictions, explain the Hazer, and explain the power and lights.
- Last take all the bins and equipment and bubble wrap and put it into your truck to bring back for pickup.
.jpg)
.jpg)
INSIDE FLAPS ARE CLOSED AND ALL BLACKED OUT!
